How to Make Porcelain Tiles

Porcelain tiles are a popular choice for both residential and commercial spaces due to their dense, durable, and water-resistant properties. These tiles are renowned for their exceptional durability, making them an ideal choice for flooring and wall applications. Beyond their practicality, porcelain tiles offer aesthetic versatility, allowing for a range of designs that can complement any interior or exterior style.

Learning how to make porcelain tiles at home opens up a world of artistic customization. From choosing unique shapes to experimenting with colors and glazes, DIY tile-making empowers creators to craft one-of-a-kind pieces. Additionally, it provides valuable insight into the intricate and rewarding process of tile creation.

The purpose of this guide is to walk DIY enthusiasts and hobbyists through the essential steps involved in making porcelain tiles from scratch, ensuring both creativity and functionality in their finished products.

Understanding Porcelain Tile Basics

What Are Porcelain Tiles?

Porcelain tiles are crafted from refined clay, primarily kaolin, and are fired at extremely high temperatures to achieve their hard and glassy finish. These tiles are renowned for their durability, low water absorption, and aesthetic appeal, making them a popular choice for a wide range of applications.

Their ability to withstand wear and resistance to moisture ensures longevity and versatility for both decorative and functional purposes.

Key Characteristics

Porcelain tiles are known for their dense and non-porous structure, which offers exceptional strength and durability. This makes them suitable for a wide range of uses, including indoor areas like kitchens and bathrooms, as well as outdoor spaces like patios and walkways. Their resistance to stains, scratches, and moisture further enhances their practical value in any setting.

Differences Between Porcelain and Ceramic Tiles

While both porcelain and ceramic tiles are made from clay, there are distinct differences between the two. Porcelain tiles are made from more refined clay and fired at higher temperatures, resulting in a denser and more durable product. This higher density not only grants porcelain its strength but also lowers its water absorption rate compared to regular ceramic tiles. These attributes make porcelain tiles ideal for high-traffic areas and environments exposed to moisture.

Materials and Tools Needed

Raw Materials

• Kaolin Clay: The primary component for creating porcelain and ceramic tiles.
• Feldspar and Quartz: Essential for adding hardness and durability to the tiles.
• Water: Used to form the clay into a workable and moldable consistency.

Tools and Equipment

• Tile Molds or Cutters: To shape the tiles into precise dimensions.
• Rolling Pin or Slab Roller: For flattening the clay evenly and consistently.
• Kiln: A crucial tool capable of reaching high temperatures (1200–1400°C / 2200–2550°F) necessary for firing the tiles.
• Glazes and Brushes: Applied for finishing, adding a protective and decorative layer to the tiles.
• Sponges, Buckets, and Mixing Tools: Used during the preparation and cleanup processes, ensuring a smooth workflow.

These materials and tools form the foundation for producing high-quality porcelain and ceramic tiles, ensuring durability, functionality, and aesthetic appeal.

Mixing and Preparing the Clay Body

Creating the Porcelain Mixture

To create the ideal porcelain mixture, begin by combining kaolin, feldspar, quartz, and water in precise proportions. A typical ratio includes 50% kaolin, 25% feldspar, and 25% quartz. Carefully measure these components and mix them thoroughly until a smooth, lump-free clay body is achieved. This process ensures consistency and helps maintain the structural integrity of the finished product.

Wedging the Clay

Once the porcelain mixture is ready, it must undergo the wedging process. This involves kneading the clay to remove any trapped air bubbles, which can cause defects such as cracks during firing. Wedging also helps create a uniform texture throughout the clay, making it easier to work with during the shaping and forming stages.

Resting the Clay

After wedging, the clay should be allowed to rest for at least a day. This resting period increases the plasticity of the clay, enhancing its workability and flexibility. It also ensures that the clay is evenly hydrated, making it easier to manipulate into the desired shapes during the pottery process.

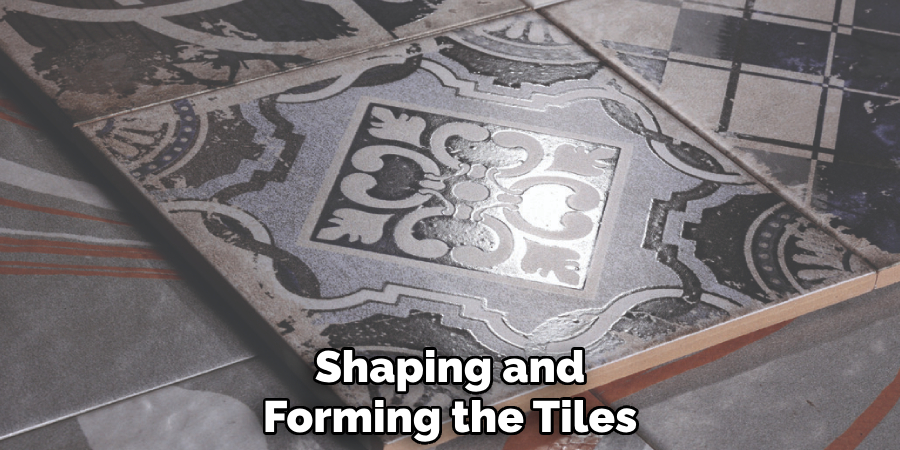

How to Make Porcelain Tiles: Shaping and Forming the Tiles

Rolling Out the Clay

To begin shaping the tiles, use a slab roller or a rolling pin to roll out the clay to a uniform thickness, typically between ¼ inch and ½ inch. Maintaining consistent thickness is crucial as it minimizes the risk of warping or cracking during the drying and firing processes. Ensure the work surface is clean and lightly dusted with cornstarch or powdered clay to prevent sticking.

Cutting Tiles to Size

Once the clay is rolled out, use tile molds, templates, or cutters to cut the clay into the desired shapes and sizes. Precision at this step ensures that the tiles will fit together seamlessly if they are part of a larger project. After cutting, smooth the edges of each tile using a damp sponge or your fingers to remove roughness and create a polished look.

Adding Texture or Design (Optional)

For decorative purposes, you can add texture or designs to the surface of the tiles. Imprint patterns using stamps, textured rollers, or found objects with distinctive surfaces. For custom or intricate designs, hand-carve details onto the tiles using carving tools. Adding texture enhances the visual appeal and gives the tiles a unique, handcrafted touch.

Drying and Bisque Firing the Tiles

Air Drying the Tiles

After shaping and texturing your tiles, allow them to dry completely before moving on to the bisque firing process. Lay each tile flat on a clean, dry surface, ensuring they are spaced apart to promote even airflow. Dry the tiles slowly over several days to prevent cracking or warping caused by rapid drying. To further reduce the risk of distortion, gently turn the tiles every day or so to ensure both sides dry evenly. Monitor the tiles closely, as uneven drying can create weak spots or unwanted curves.

Bisque Firing Process

Once the tiles are fully dry, they are ready for the bisque firing stage. Arrange the tiles carefully in the kiln, ensuring they are not touching to avoid fusing together during firing. Set the kiln temperature to approximately 1000°C (1832°F), as this temperature effectively hardens the clay and prepares it for glazing.

The first firing process removes residual moisture and solidifies the tile’s structure, making it easier to handle and less prone to damage. After the kiln run is complete, allow the tiles to cool slowly inside the kiln to prevent thermal shock. Once cooled, the bisque-fired tiles are sturdy and ready for the next steps, such as applying glaze or decoration.

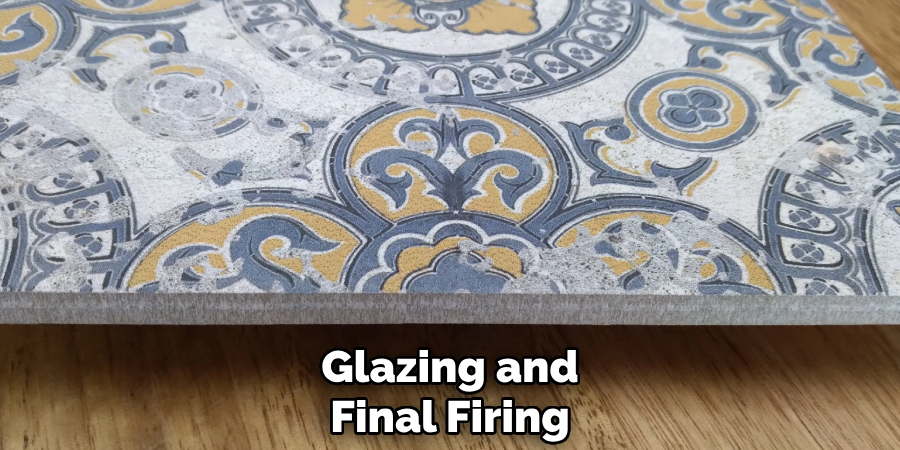

Glazing and Final Firing

Choosing a Glaze

Select a glaze that complements the porcelain tiles and achieves the desired finish. Transparent glazes highlight intricate details in the tile’s surface, while colored gloss finishes add vibrant, decorative appeal. Depending on the desired effect, glazes can be applied by brushing, pouring, or spraying onto the tiles, providing flexibility in the application process.

Applying the Glaze

When applying glaze, ensure an even coating to achieve a uniform finish during the firing process. Avoid over-application by carefully wiping off any excess glaze from the bottom of the tiles, as this will prevent the tiles from sticking to the kiln shelves during firing. Use a turntable or specialized tools if necessary to maintain precision and control.

Final Firing (Glaze Firing)

The final firing process, also known as glaze firing, involves firing the tiles at a higher temperature, typically between 1200 °C and 1400°C (2200°F and 2550°F). These elevated temperatures allow the glaze to melt and fuse with the underlying clay body, resulting in a smooth, glossy, and durable surface.

Closely monitor the kiln during this stage to avoid over-firing, which could lead to defects such as bubbling or discoloration. Once the firing cycle is complete, allow the kiln to cool gradually to prevent thermal shock, cracking, or crazing. The finished tiles will then be ready for use, showcasing their vibrant colors and finished texture.

Finishing and Quality Control

Inspecting for Defects

Carefully inspect each tile to identify cracks, pinholes, or uneven glaze application. Remove any tiles that fail to meet quality standards, as these defects can compromise the finished product’s performance and appearance. When possible, rework rejected tiles to salvage them.

Optional Polishing

For unglazed or matte-style tiles, consider polishing the surfaces to achieve a smooth, glossy finish. This step enhances the tile’s aesthetic appeal and adds an extra layer of refinement.

Storage Tips

Store the finished tiles in a dry, clean area. Use spacers between tiles to prevent chipping, scratching, or other damage during storage or transportation.

Conclusion

Learning how to make porcelain tiles is a rewarding and creative process. It involves essential steps such as mixing clay, shaping, drying, bisque firing, glazing, and final firing. By experimenting with different shapes and glaze options, you can craft unique and personalized tiles.

Always prioritize safety precautions when handling kilns and chemicals to ensure a secure working environment. With patience and practice, DIY tile-making not only becomes a practical skill but also a fulfilling artistic endeavor. Start your journey today and create beautiful, custom tiles that reflect your creativity and craftsmanship.
